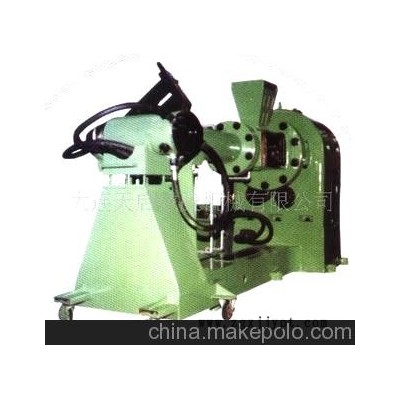

热喂料橡胶挤出机

用途：

本机用于挤制胎面、内胎、垫带、胶管等橡胶半成品。

结构特点：

1、本机分别配有内胎、胎面机头。机头的内层空腔可通入蒸汽或冷却水,以控制机头温度。

2、机身制有螺旋形水汽通道以提高加热冷却效果，并设有测温度及温度显示装置；喂料口处带有进行强制喂料的喂料辊，入胶快；出胶均匀。

3、螺杆和衬套均采用氮化钢，并经过氮化处理，具有足够的强度和耐磨性。

4、减速机均采用合金钢圆孤齿传动（XJ-200的减速机为渐开线齿轮），并配有强制润滑装置，具有传动效率高、使用寿命长、噪音小等优点。

5、本机配有交流整流子电机，可根据生产要求选取不同速度。

APPLICATION:

The present machine is used for extruding such half-finished rubber products as inner tube,tire tread,rim band,rubber tube and,etc.

GENERAL DESIGN AND FEATUER:

1.The machine is provided with two kinds of head,tube head and tire tread head.Cavities within heads are passable by steam and cooling water to control head temperature.

2.A circular pass way in spiral shape is provided within the extrusion body for higher heating and clliing efficiency and with a thermomentric and temperature display panel.For convenient and high-speed feeding,a forced feeding roll is provided with at the feeding opening.

3.The screw and bush made of nitrided steel are nitrigen treatment,so strength and abrasion resistance enough.

4.A circular are gears,made of alloy steel,are adopted for the reducer driven(The reducer for XJ-200 is involute gear-driven),and the reducer is equipped with a forced lubrication system,so high driven efficiency,long service life,less noise and,etc.

5.The extruder is equipped with an A.C.commutator motor and different speed can be chosen according to requirements of the production.

热喂料挤出机系列

技术规范

SPECIFICATION：

规格

项目 SPEC

ITEM

XJ-65

XJ-85

XJ-115

1、 螺杆直径

Screw Dia.(mm)

外胎机头口型

65

85

115

2、 Die of Tire Tread Head

最大宽度Max..Width(mm)

最大厚度Max.Thickness(mm)

内胎机头口型最大直径

3、 Max.Dia of Die of Tube Head(mm)

螺杆转速

4、 Screw speed (r/min)

喂料辊直径

20、27、35、47

27、40、53、80

20、33、46、60

5、 Feed Roll Dia.(mm)

驱动电机型号

Y160M-6

YD180L8/4

Y200L2-6

6、 Motor Model

功率

Power (KW)

蒸汽压力

7.5

17

22

7、 Steam Pressure (MPa)

冷却水压力

0.2~0.4

0.2~0.4

0.2~0.4

8、 Cooling Water Pressure(MPa)

生产能力

0.2

0.2

0.2

9、 Capacity(Kg/h)

外型尺寸

50~80

62~270

100~420

10、Overall Dimensions(L × W × H)

带外胎机头

With Tire Tread Head(mm)

带内胎机头

With Tube Head(mm)

1600 × 675 × 1208

2050 × 735 × 1275

2300 × 800 × 1370

11、重量

Weight(Kg)

1200

2500

2900
